Scaling and Clustering Principles

MonkDB supports flexible clustering patterns to match different workload shapes, operational preferences, and resiliency requirements.

Clusters can scale horizontally for distributed workloads or use primary–replica patterns for simpler read-scaling deployments.

Supported Clustering Patterns

MonkDB supports two primary clustering models.

1. Distributed Shard-Based Cluster

  • Tables are partitioned into shards distributed across nodes.
  • Each shard has a primary and optional replica copies.
  • Query execution fans out across shard holders.
  • Reads and writes are distributed across the cluster.

Best suited for:

  • Large datasets
  • Mixed operational + analytical workloads
  • High ingest throughput
  • Distributed compute scaling

Shard distribution and replica placement

2. Primary with Read Replica Topology

A primary node handles write operations while replicas serve read traffic.

  • Primary node processes writes
  • Replicas maintain synchronized copies
  • Replicas can serve read-heavy workloads
  • Provides simple scaling for read-intensive applications

Best suited for:

  • Read-heavy applications
  • Simpler operational topology
  • Controlled write workloads

Primary with read replica topology

Cluster Sizing Baseline

For production deployments:

  • Minimum 3 nodes for quorum-safe distributed clusters
  • Replication aligned with failure domains (node, rack, zone)
  • Storage sized for data growth + replicas
  • Memory sized for query peaks and intermediate results

For primary–replica deployments:

  • Size primary node for peak write load
  • Size replicas for read concurrency

Capacity Planning Dimensions

Plan capacity across four dimensions.

CPU

Handles:

  • SQL parsing
  • Query planning
  • Execution
  • Shard-level processing
  • Distributed merge operations

Memory

Memory usage includes:

  • JVM heap
  • Query intermediate results
  • Circuit breakers
  • Caches
  • Distributed merge buffers

Storage

Storage footprint includes:

  • Shard data
  • Replica copies
  • Translog files
  • Snapshot repositories

Network

Network traffic includes:

  • Shard replication
  • Distributed query fan-out
  • Shard relocation
  • Recovery operations

Baseline load testing should measure:

  • Steady-state performance
  • Peak ingest behavior
  • Worst-case query patterns

Horizontal Scaling Model

Scaling behavior depends on deployment topology.

Distributed Cluster Scaling

Adding nodes increases:

  • Total CPU
  • Total memory
  • Storage capacity
  • Distributed query workers

Shard allocation automatically redistributes data across nodes.

Distributed queries utilize additional shard workers as the cluster grows.

Primary–Replica Scaling

Adding replicas increases:

  • Read throughput
  • Read concurrency
  • Failover capacity

Write throughput remains bounded by the primary node.

Read/write separation reduces contention on the write path.

Practical Scale-Out Flow

Recommended scaling procedure:

  1. Add one node or failure domain at a time
  2. Monitor shard relocation
  3. Observe cluster health
  4. Validate query latency and throughput
  5. Expand incrementally

Monitor using:

  • sys.nodes
  • sys.shards
  • sys.allocations

Scale Trigger Decision Table

Signal Typical Pattern Primary Action
Sustained high CPU p95 node CPU near saturation Add nodes and rebalance shards
Primary node saturation write-heavy workload Scale primary node or distribute writes
Breaker exceptions memory pressure during queries Increase memory capacity or tune queries
Long shard recovery times recovery exceeds SLO Reduce shard size or improve storage
Read latency spikes p95/p99 read latency increases Add replicas or additional nodes
Write latency increases replication or I/O pressure Review replication policy and storage

Shard Strategy Guidance

Shard count affects both performance and operational complexity.

Too Few Shards

  • Limited parallelism
  • Underutilized cluster resources

Too Many Shards

  • Scheduling overhead
  • Cluster metadata pressure
  • Slower recovery operations

Choose shard counts based on:

  • Expected dataset growth
  • Node count trajectory
  • Concurrent workload patterns

Shard Size Heuristics

Operational recommendations:

  • Keep shard sizes manageable for relocation
  • Prefer predictable partitioning for time-series workloads
  • Periodically review shard strategy as clusters grow

Replica Strategy Guidance

Replicas improve:

  • Read throughput
  • Query parallelism
  • Fault tolerance

Tradeoffs include:

  • Increased storage usage
  • Additional write amplification
  • More recovery traffic

Replica count should reflect:

  • SLA requirements
  • Read concurrency
  • Failure tolerance goals

Zone-Aware Resiliency

Deploy clusters across independent failure domains when possible.

Examples:

  • Availability zones
  • Racks
  • Physical hosts

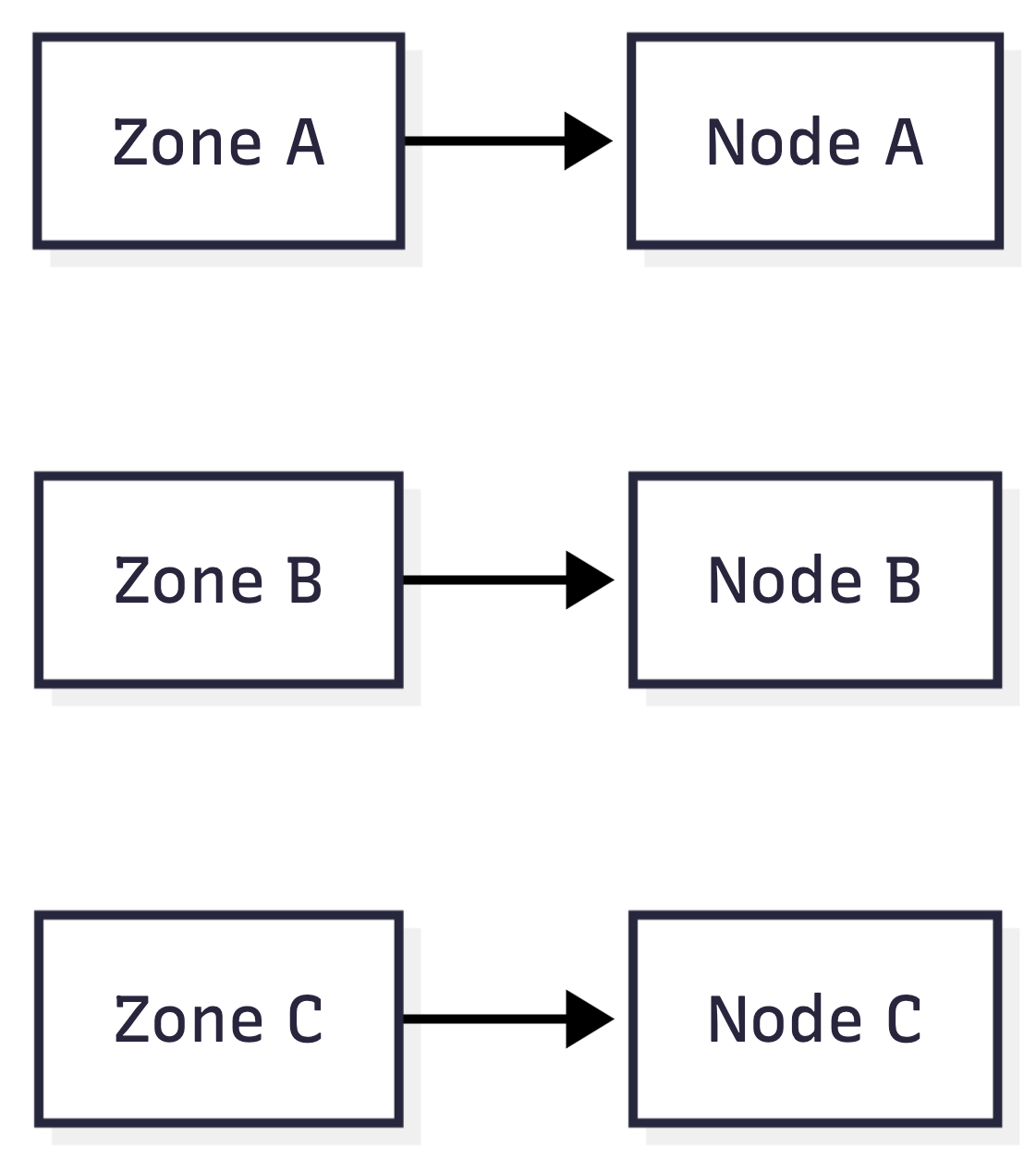

Zone aware resiliency

Primaries and replicas should be distributed across zones to reduce correlated failures.

Kubernetes Scaling Principles

Recommended patterns:

  • Deploy data nodes using StatefulSets
  • Assign persistent volumes per pod
  • Configure pod anti-affinity
  • Avoid placing shard replicas on the same node

Scale gradually and monitor relocation and query latency during scaling operations.

Docker and VM Deployment Principles

Operational guidance:

  • Maintain stable node.name
  • Preserve persistent storage across restarts
  • Avoid frequent recycling of data nodes
  • Use explicit cluster discovery configuration

Replica nodes must resynchronize cleanly after restarts.

Node-Level vs Cluster-Level Settings

Node-Level Settings

Examples:

network.*
path.*
node.name
transport.*
http.*
JVM heap configuration

These settings apply only to the local node.

Cluster-Level Settings

Examples:

indices.breaker.*
governance.*
audit.*
lineage.*
fdw.allow_local

These settings affect the entire cluster.

Rolling Operations

Recommended approach:

  • Perform node updates one at a time
  • Allow shards to stabilize before continuing
  • Monitor cluster health throughout operations

Key monitoring tables:

  • sys.nodes
  • sys.shards
  • sys.allocations

Scale Troubleshooting Checklist

SELECT name, load['1'], mem['used_percent'], heap['used']
FROM sys.nodes
ORDER BY name;

SELECT table_name, id, routing_state, state
FROM sys.shards
ORDER BY table_name, id;

SELECT table_name, shard_id, node_id, explanation
FROM sys.allocations
WHERE explanation IS NOT NULL
ORDER BY table_name, shard_id;

If latency increases during scale events:

  • Pause further node operations
  • Wait for shard relocation to complete
  • Verify breaker pressure has stabilized
