Architecture Overview

MonkDB is a distributed, shared-nothing SQL engine designed to combine operational and analytical patterns in one system.

It supports:

  • Relational SQL workloads
  • Semi-structured JSON/object workloads
  • Search (lexical/full-text)
  • Vector similarity search
  • Geospatial queries
  • Time series workloads
  • Native memory for agentic and RAG workflows
  • Graph modeling and traversal interfaces
  • External data federation through FDW
  • Unstructured data in the form of blobs

Design goals

  • One engine for mixed SQL/search/vector/geo/graph/timeseries/full text/nosql/blob/memory workloads.
  • Horizontal scale through shard-based distribution.
  • High observability via system tables and runtime metrics.
  • Strong governance controls (policies, contracts, audit, lineage) built into query/runtime path.

Workload decision table

If your primary need is... Prefer MonkDB capability Why
Running PostgreSQL-compatible applications PGWire endpoint Existing PostgreSQL clients, ORMs, and BI tools connect without modification.
Service-to-service SQL execution HTTP SQL endpoint Simplifies authentication, routing, and stateless query execution for API-driven systems.
Operational + analytical SQL in one engine Distributed shared-nothing SQL execution Eliminates the need for separate OLTP and analytics databases.
Semi-structured application payloads OBJECT / JSON columns Store nested application data without schema fragmentation or ETL pipelines.
Semantic search and RAG retrieval FLOAT_VECTOR(N) + hybrid search Combines vector similarity and lexical search in a single query path.
AI agent memory and state persistence Native memory tables Stores agent context, conversation state, and embeddings without external vector databases.
Hybrid document retrieval Full-text + JSON + vector indexing Enables knowledge search across documents, metadata, and embeddings in one system.
Time-series telemetry (IoT, sensors, logs) Time-series optimized ingestion and querying Handles high-frequency event streams with efficient storage and time-based queries.
Geospatial analytics geo_point / geo_shape types Native spatial indexing and queries without a separate GIS database.
Graph modeling and relationship traversal Graph interfaces over relational/object tables Enables graph queries and traversal without deploying a dedicated graph database.
Knowledge graph + vector search workloads Graph + vector in same table Supports AI knowledge graphs with semantic retrieval in one platform.
Large unstructured artifacts Blob/object storage columns Stores documents, images, and artifacts alongside metadata and embeddings.
Querying external systems without pipelines Foreign Data Wrappers (FDW) Access external databases without data duplication.
Hybrid semantic + structured analytics SQL + vector + full-text in one query Ranking logic stays inside the query engine rather than external services.
Fine-grained governance enforcement Row filters, column masking, contracts, policies Governance rules are enforced during query planning and execution.
Data usage traceability and compliance Audit sinks + lineage sinks Captures query execution, data flow, and access patterns for compliance.
Runtime system observability System tables (sys.jobs, sys.nodes, sys.shards) Provides deep cluster and query visibility directly through SQL.
Financial market data ingestion Native FIX / ITCH / OUCH / FDC3 protocol support Converts wire protocols directly into queryable structured data.
Cross-protocol trading analytics Unified market data model Correlates trader intent, order flow, exchange response, and market state.
Building AI + data applications without fragmented stacks Multi-model engine (SQL + JSON + vector + geo + graph + time-series + blobs) Replaces multiple specialized data systems with a single distributed platform.

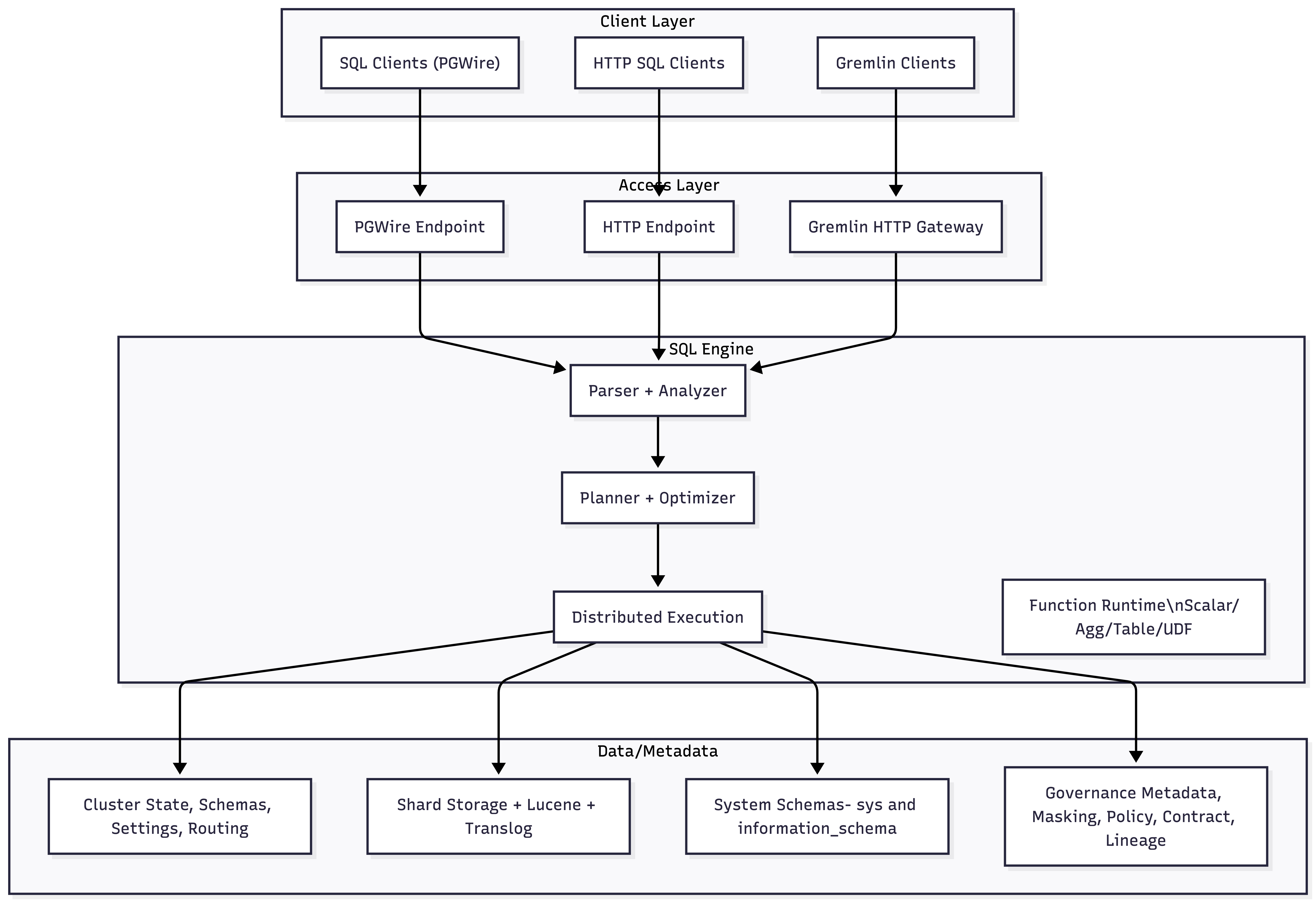

Core architecture layers

Core Architecture Layer

Control plane and data plane

Control plane responsibilities:

  • Cluster membership and node discovery
  • Routing metadata (table/shard allocation)
  • Dynamic cluster settings
  • Policy/contract metadata and governance state

Data plane responsibilities:

  • Query execution on shards
  • Distributed merge/reduce
  • Local indexing/storage lifecycle
  • Replication and recovery traffic

Node-level components

Each node can:

  • Accept client traffic
  • Parse/analyze/plan SQL
  • Execute local shard operations
  • Participate in distributed merge/reduce
  • Store shard data and replicas

This avoids primary/secondary bottlenecks common in single-writer architectures.

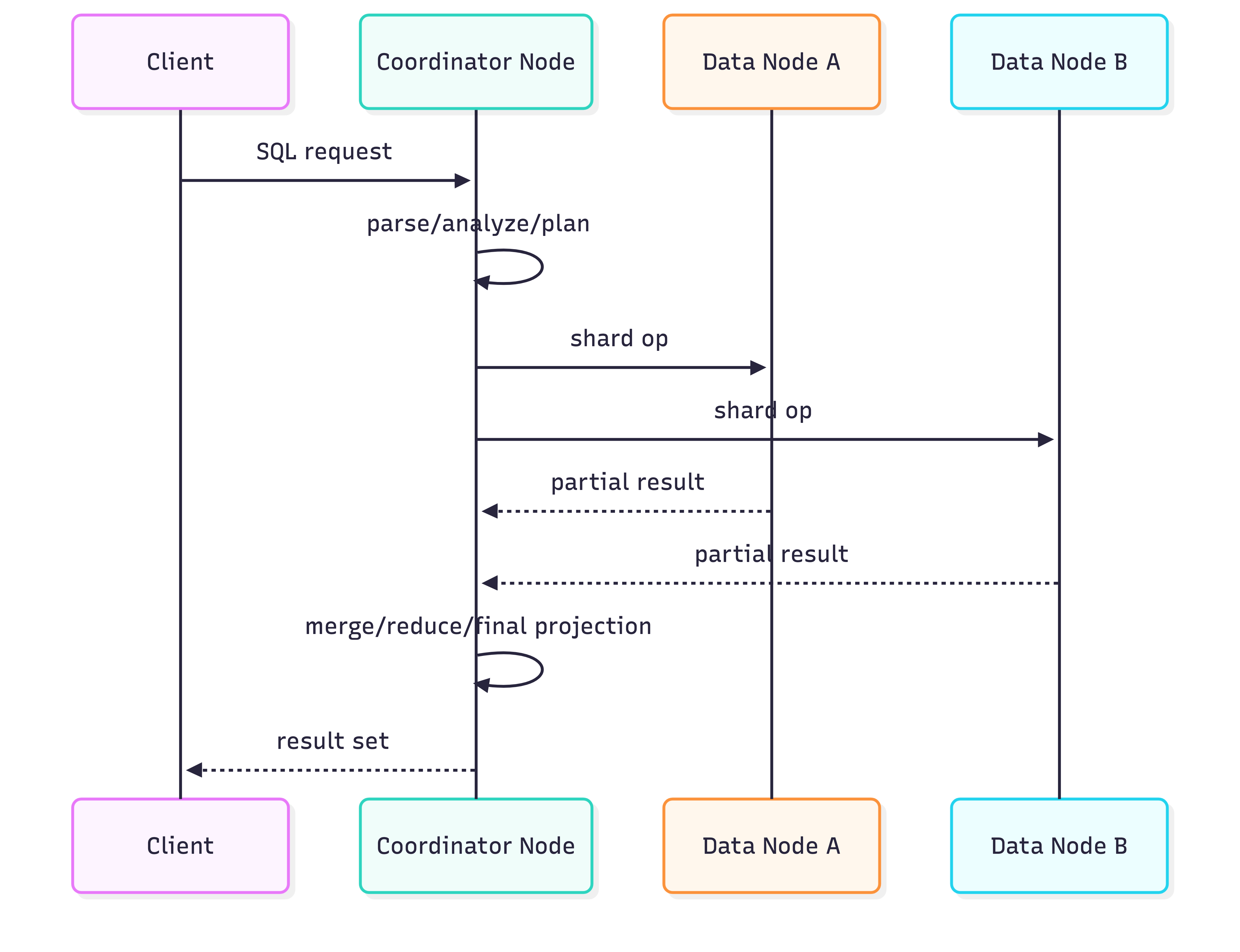

Query execution lifecycle

Query exection lifecyle

Execution stages:

  1. Parse and analyze SQL.
  2. Resolve table/routing metadata and function signatures.
  3. Build distributed plan (collect, merge, sort, join, projection nodes).
  4. Dispatch shard-level operators to participating nodes.
  5. Stream partial results back to coordinator for final merge.

Query path decision flow

Query path decision flow

Multi-model model-in-one-table pattern

MonkDB allows mixed columns in one table, for example:

  • Primary keys and typed relational columns
  • Nested object columns for JSON payloads
  • FLOAT_VECTOR(N) for embeddings
  • geo_point/geo_shape for spatial context

This avoids cross-database synchronization for many applications.

Governance in runtime path

Governance is enforced during query planning/execution:

  • Row filter policies can constrain visible rows.
  • Column masking policies can transform selected columns.
  • Contracts and AI usage policies can warn/block based on configured modes.
  • Audit and lineage sinks emit observability artifacts for policy and data-flow traceability.

Built-in governance and observability surfaces

  • Governance: policies, contracts, lineage, audit sinks
  • System diagnostics: sys.jobs, sys.operations, sys.nodes, sys.shards, sys.allocations
  • Information metadata: information_schema.*
